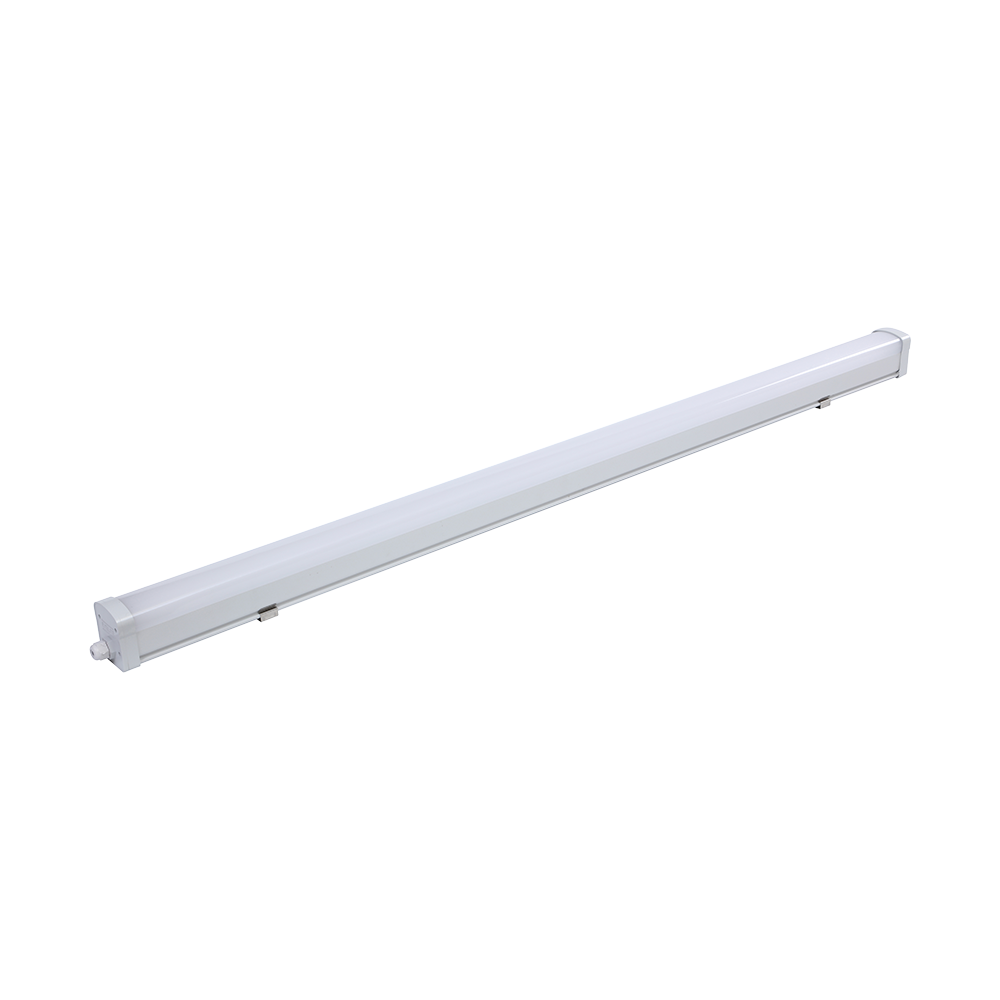

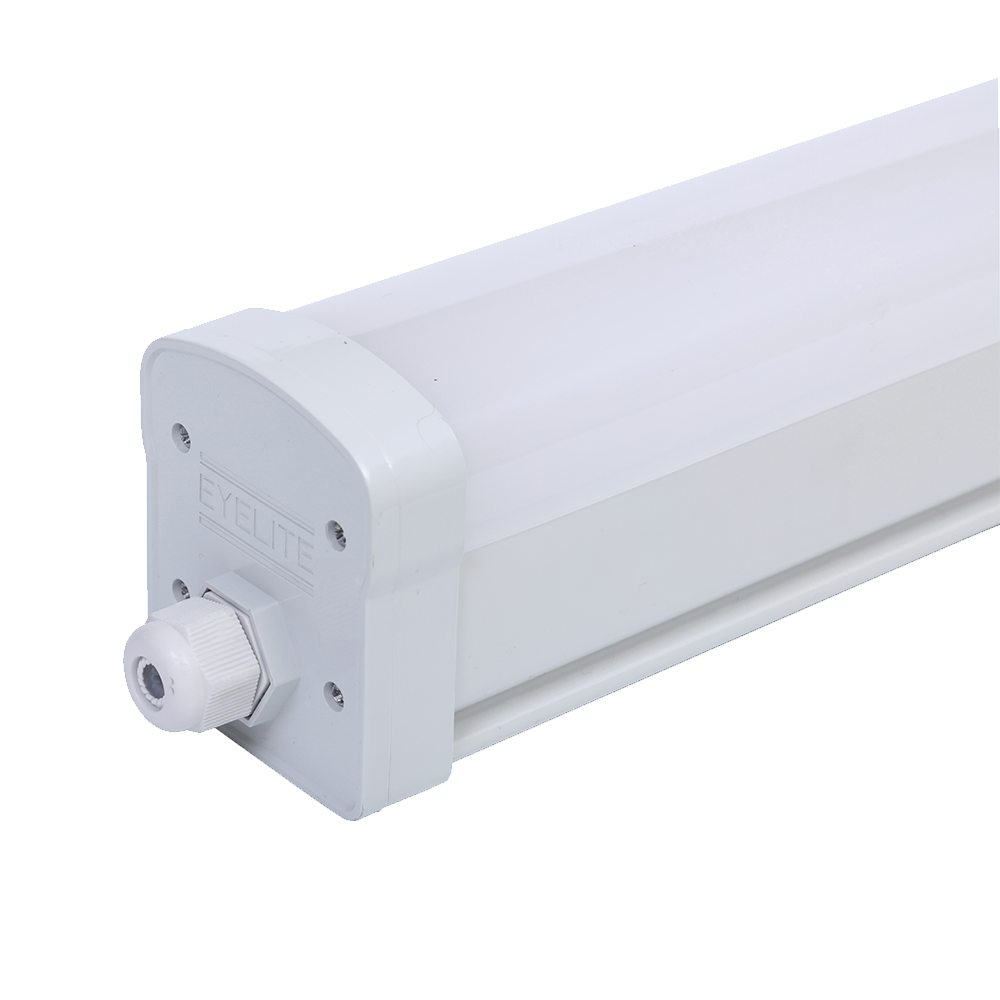

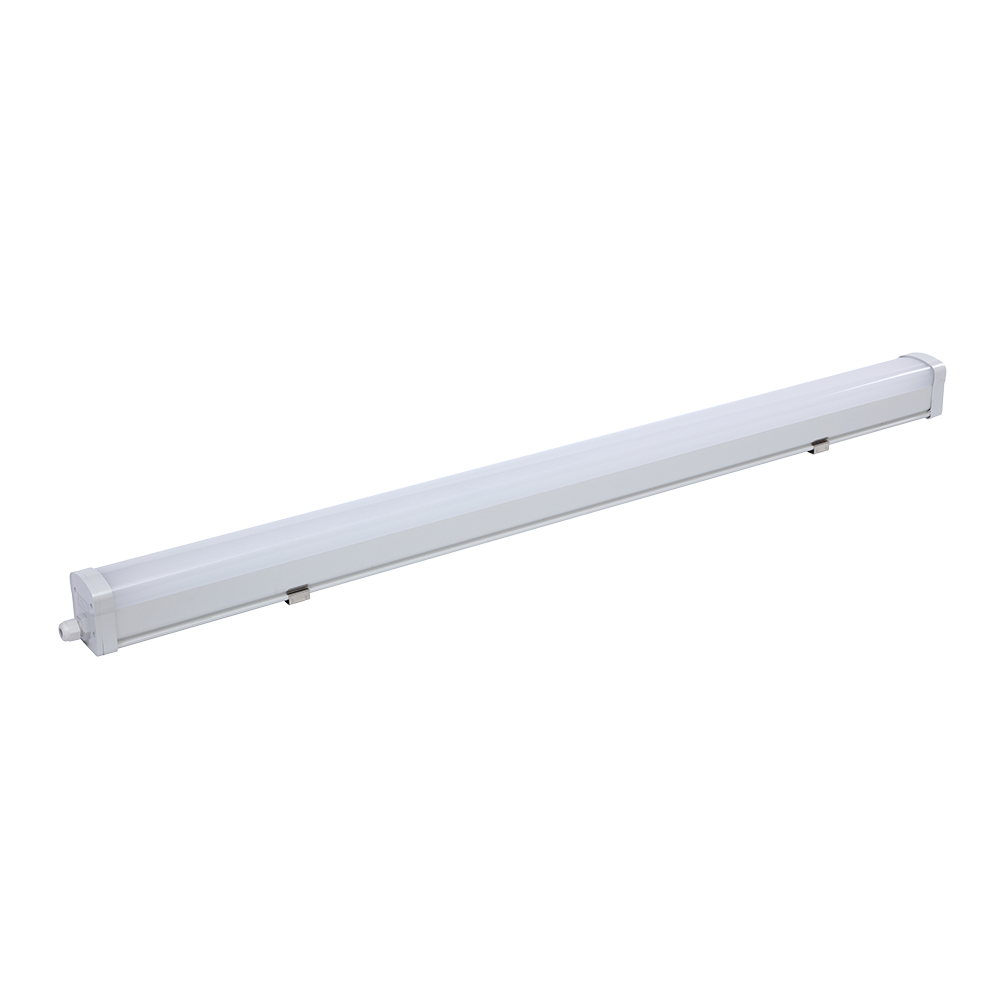

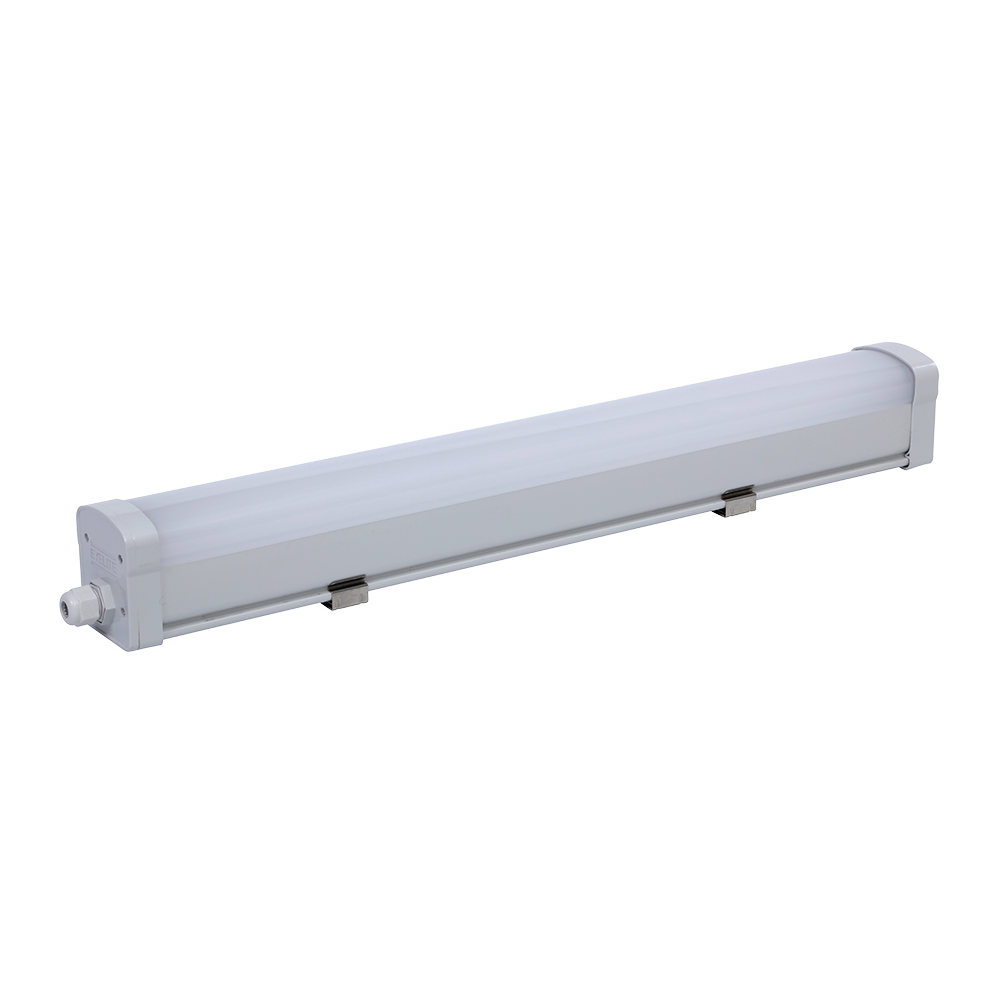

LED WEATHER-PROOF
SANBO/WP
EY253
Wattage Range • 18W, 36W, 50W

Product Features
 • Rigid extrusion of PC housing and Injection molding of PC covers
 • Protection against water and dust (IP65) and impact (IK08)
 • High lumen output provides energy saving

Emergency Power Pack
 • Optional Emergency Power Pack version (Model: EY253-36W-EM)
 • EY253-36W-EM (36W) last up to 3 hours without electricity
 • 4W Emergency discharge
 • LiFePO4 battery backup
Electrical System
Input voltage 200 - 240Vac, 50/60Hz
Insulation Class Class I
LED Driver Flicker Free - OSRAM OT/FT

Light Source/Optical
LED Type SMD 2835 with TM21 and LM80
Color Temperature (CCT) Standard 4000K/6500K & (3000K and others upon request)
Color Rendering Index (CRI) Ra > 80
(Ra > 90 upon request)
Life Time Residual Flux (L70), >50,000 hours @ Ta: 40°C

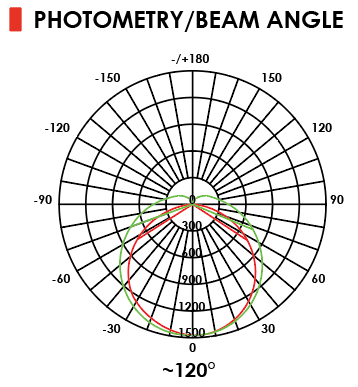

Optical System ~120° Opal PC Extrusion Diffuser

Fixtures
Ingress Protection (IP) IP65
Impact Resistance (IK) IK08
Housing Material PC Extrusion and PC Side Covers
UL-94 Fire Retardant Grade
Working Temperature Ta : -30˚C to +40˚C

Compliance Test
Type Test Compliance (Luminaire)                 CB Scheme IEC 60598-1, EN 60598-1
IEC & EN 60598-2-1, IEC/EN 62471
EN 62493
EMC Certified EN 61000-3-2, EN 61000-3-3
EN 55015, EN 61547
LED Compliance Test IESNA LM-80
TM-21
Ingress Protection Test Accord to IEC 60598-1 (IP65)
Accord to IEC 60598-1 (IP65) IEC 62262 (IK08)

Application
 • Carpark  • Staircase  •  Canopy  •  Garden Shed  •  Walkway  •  Corridors • Factory  • Warehouse  • Underground Tunnel

Optional Item

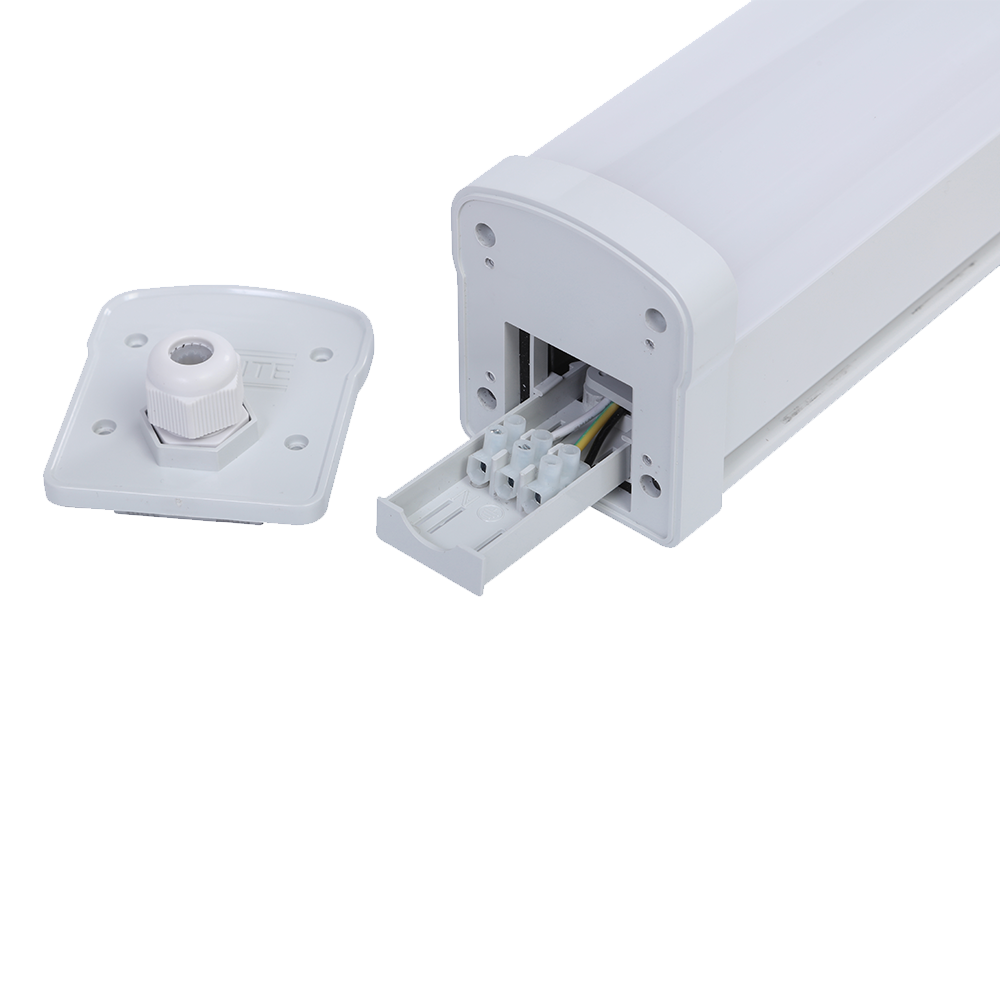

 • Series Connection Double End Plug-in Version - EY253-36W-SC
 • Motion Sensor, Photocell
 • DALI / 1-10V Dimming Control
 • IoT Smart Control

*Luminaires should be mounted in a shady or covered environment protected against direct sunlight.
Due to the possible chemical reaction of polymer nature of housing, luminaire must not be installed in places where there are presence of high concentration of acid or alkaline enviroment.


  MODEL NO. EY253-18W EY253-18WL EY253-36W EY253-50W
  Power Consumption  ±5% (W) 18W 18W 36W 50W
  Luminaire Flux ±5% (lm) 1,890 lm 1,980 lm 3,960 lm 5,500 lm
  System Efficacy ±5% (lm/W) 105 lm/W 110 lm/W 110 lm/W 110 lm/W
  Power Factor (PF) 0.98 0.98 0.98 0.98
  Replacement of Magnetic Fluorescent 1 x 36W 1 X 36W 2 x 36W 2 x 58W
  Total Harmonic Distortion (THD) % < 10% < 20% < 10% < 10%
  Colour Tolerance (SDCM) ≤6 ≤6 ≤6 ≤6
  Net Weight (kg) 0.71 1.08 1.10 1.32
  Gross Weight (kg) 18.38 22.15 22.15 20.15
  Product Dimension, L x W x H (mm) 650 x 71 x 82 1250 x 71 x 82 1250 x 71 x 82 1550 x 71 x 82
  Individual Carton Dimension, L x W x H (mm)  660 x 75 x 85 1260 x 75 x 85 1260 x 75 x 85 1560 x 75 x 85
  Master Carton Dimension, L x W x H (mm)  680 x 330 x 460 1280 x 330 x 370 1280 x 330 x 370 1575 x 250 x 370
  Quantity/Master Carton (pcs) (m3) 20 16 16 12
  CBM (m3) 0.103 0.156 0.156 0.146
